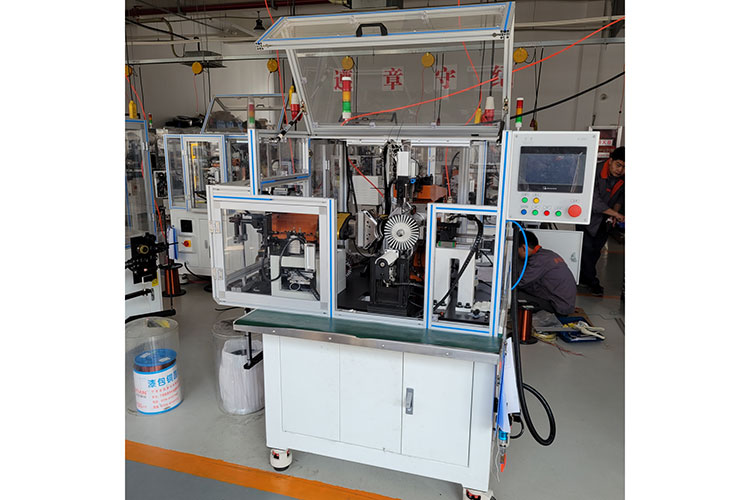

Rotor Slot Type High Slot Full Rate Winding Machine Single Machine

SHUAIRUI® Rotor Slot Type High Slot Full Rate Winding Machine Single Machine

Equipment introduction:

1.This machine is used for the winding process of the rotor.

2.Equipment stand-alone operation or equipment stand-alone operation is simple and easy to operate.

3.Automatically complete functions such as winding, embedding, clamping, and tangent.

4.Adopt servo shaping and double-flying fork winding mechanism.

5.It can improve the winding full slot ratio of the rotor.

6.Applies to even-numbered products.

7.Make the winding more compact.

8.It ensures the quality of the winding and the quality of the rotor.

9.Rotor outer diameter: φ26-φ65

10.Rotor stack thickness: 35-80mm

11.Wire diameter: φ0.5－φ1.2mm

12.Working air pressure: 0.5-0.7MPa.

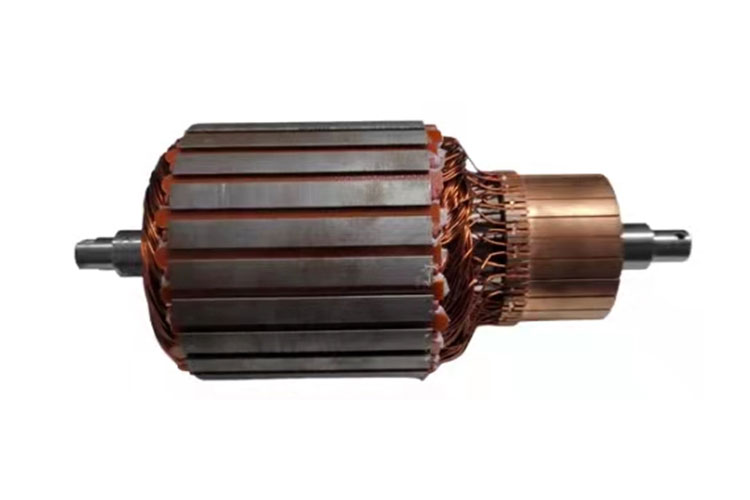

13.Application areas: electric tool rotors, garden tool rotors, electric forklift motor rotors, etc.
