Three in One Rotor Assembly Machine

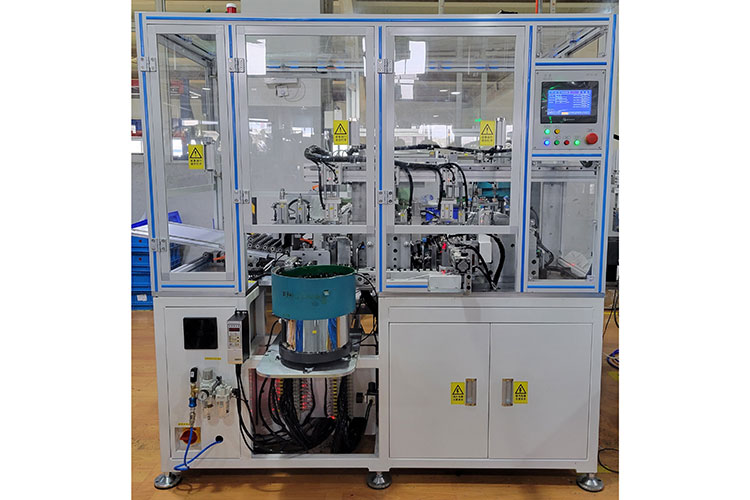

SHUAIRUI® Three in One Rotor Assembly Machine

Equipment introduction:

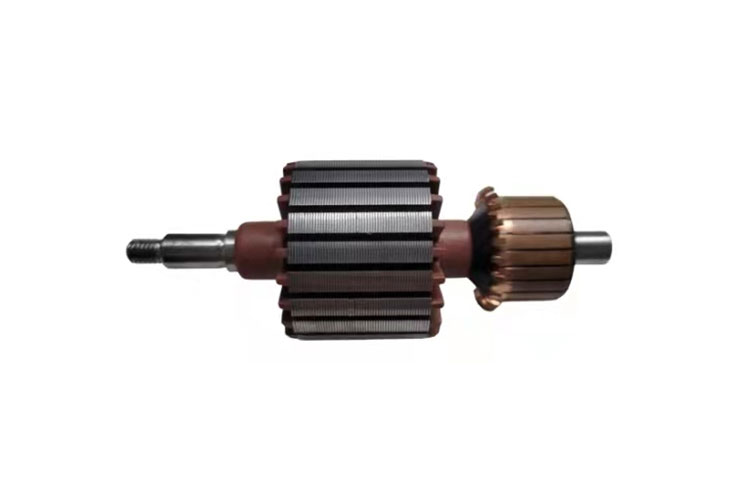

1.This machine is used for the press-fitting process of rotor shaft, iron core, end plate and commutator.

2.Manually add raw materials, and automatically complete feeding, material distribution, shaft entry, end plate entry, and commutator entry. Automatically send out after pressing

3.The input shaft is pressed in by a servo electric cylinder and equipped with a pressure sensor.

4.The feeding method of the iron core is a flat and inclined rolling type.

5.The feeding method of the shaft is a funnel type.

6.Both ends of the plate adopt the cylinder press-fit method.

7.The feeding method of the end plate is a vibrating plate.

8.The commutator is pressed in by a servo electric cylinder and equipped with a pressure sensor.

9.The feeding method of the commutator; the vibrating plate and the material tower are optional.

10.The positioning method of the commutator is: gas vibration (no jamming)

11.Equipped with a blanking manipulator, which can directly put the pressed rotor into the assembly line or the chain line and the sawtooth line.

12.Working air pressure; 0.5-0.7MPa.

13.Applicable fields: vacuum cleaner motor rotors, small household appliances rotors, water pump rotors, automotive condenser fan rotors, blower motor rotors, push rod motor rotors, electric forklift motor rotors, glass lift motor rotors, automotive oil pump motor rotors, car window shaker motor rotors, printers Motor rotor, sewing machine motor rotor and other fields.
