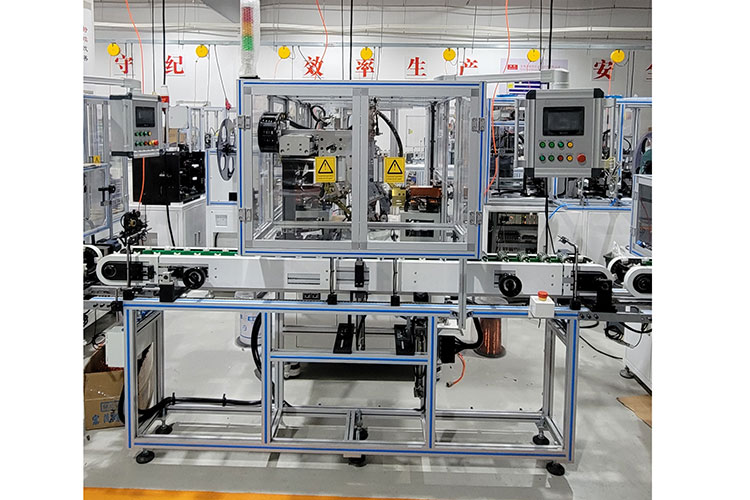

Rotor Hook Type Winding Machine with Conveyor Line

SHUAIRUI® Rotor Hook Type Winding Machine with Conveyor Line

Equipment introduction:

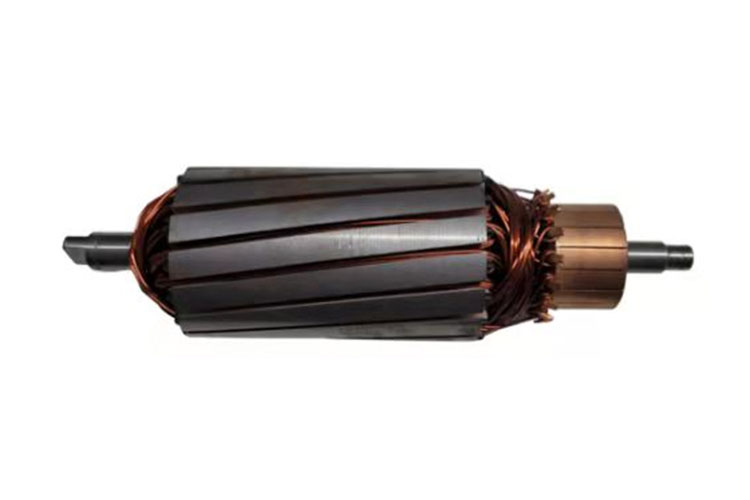

1.This machine is used for the winding process of the rotor.

2.Equipment stand-alone operation or equipment stand-alone operation is simple and easy to operate.

3.Automatically complete the functions of winding, hooking, clamping, tearing and other functions.

4.Complete quick replacement of winding molds and fixtures within 15 minutes.

5.Applicable to a variety of different hook winding methods, such as double winding, etc.

6.Applies to even-numbered products.

7.Winding efficiency: 30S (24 hooks/12 slots/30 turns)

8.Flying fork rated speed: 2000 rpm

9.Tension control system: Servo tension control

10.Applicable wire diameter: 0.19 ~ 0.65mm (special can be customized)

11.Rotor outer diameter: φ20～φ60mm (special can be customized)

12.Rotor stack thickness: 15 ~ 60mm (special can be customized)

13.Working air pressure: 0.5-0.7MPa.

14.Applicable fields: rotors of electric tools, rotors of garden tools, rotors of vacuum cleaner motors, rotors of small household appliances, rotors of water pumps, rotors of automobile condenser fans, rotors of blower motors, rotors of push rod motors, rotors of electric forklift motors, rotors of glass lift motors, rotors of motors of automobile oil pumps , car window motor rotor, printer motor rotor, sewing machine motor rotor and other fields.
