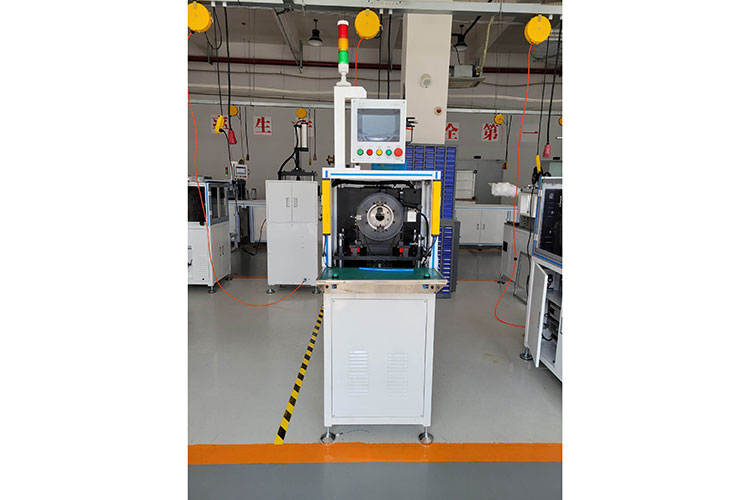

Brushless Stator Slot Lining Machine with Single Machine

SHUAIRUI® Brushless Stator Slot Lining Machine with Single Machine

Equipment introduction:

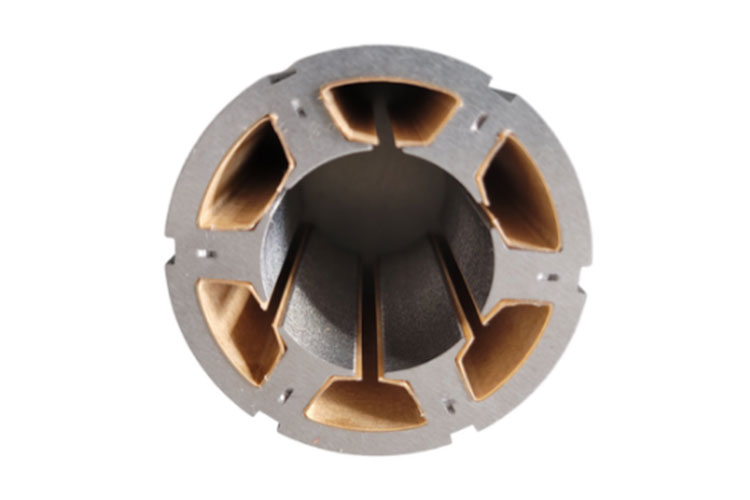

1.This machine is used for brushless stator insulation paper insertion process.

2.Quickly change tooling, simple operation, convenient and reliable.

3.It can automatically load and unload, servo indexing, and mechanically cooperate with paper feeding and cutting.

4.Feeding method: Servo feeding.

5.Indexing method: Servo indexing.

6.Paper feeding accuracy: ±0.15mm.

7.Feeding efficiency: 1 second/slot.

8.Insulating paper: Various types of insulating paper materials currently on the market.

9.Working air pressure: 0.5-0.7MPa.

10.Applicable fields: power tools, garden tools, vacuum cleaner motors, automotive motors, small household appliances, and other fields.
