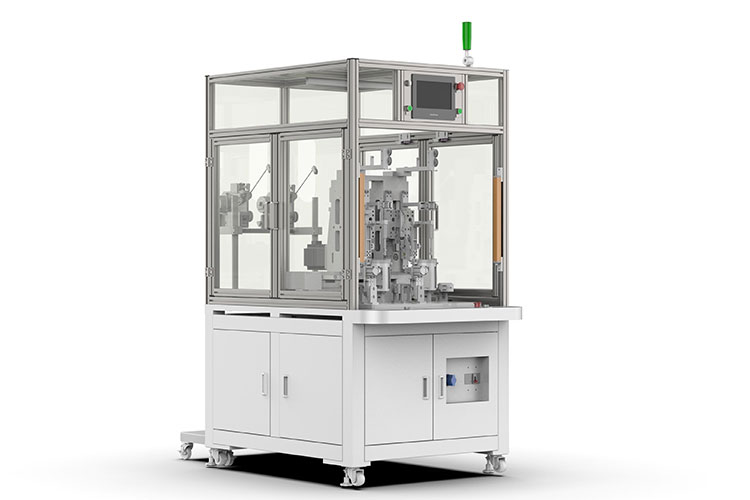

Brushless Double Station Internal Winding Machine Needle Type

SHUAIRUI® Brushless Double Station Internal Winding Machine Needle Type

Equipment introduction:

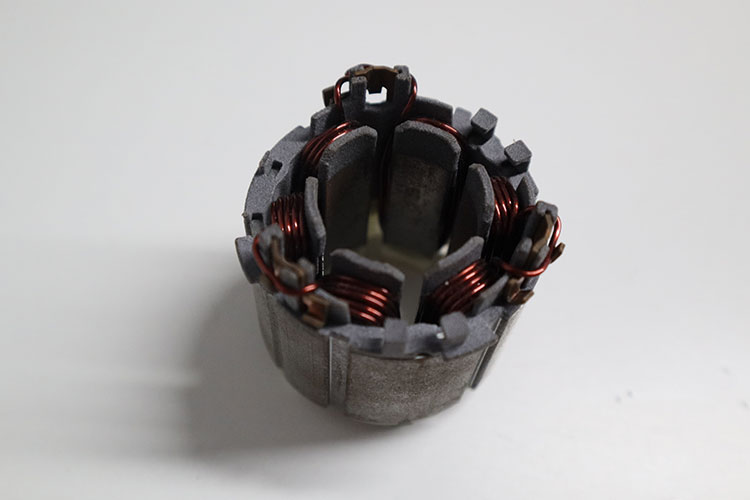

1.This machine is used for brushless stator inner winding process.

2.Using fly fork winding and outer winding technology, double-station winding.

3.The wiring is arranged during the winding process to ensure the precision and appearance of the wiring.

4.There are many types of brushless motor winding machines, which can be divided into general-purpose type and special-purpose type according to their use, and special-purpose type-a brushless motor winding machine for a specific product.

5.Stator outer diameter: Ф30mm-φ130mm.

6.Adapt to wire diameter: φ0.09mm—φ1.1mm.

7.Rated speed: 500r/min.

8.Working air pressure: 0.5-0.7MPa.

9.Applicable fields: power tools, garden tools, automotive motors, hub motors, tendon guns, model aircraft and other fields.
