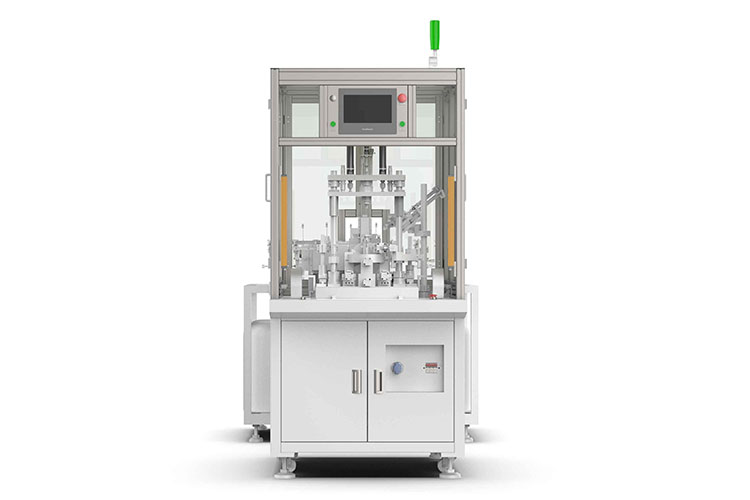

Brushless Single Station Outer Winding Machine Flying Fork Type

SHUAIRUI® Brushless Single Station Outer Winding Machine Flying Fork Type

Equipment introduction:

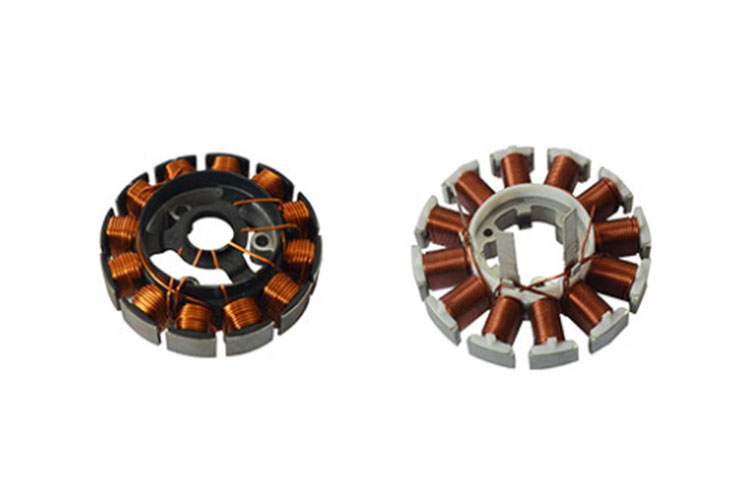

1.This machine is used for brushless stator outer winding process.

2.Using the flying fork winding and outer winding technology, single-station winding.

3.When the single-strand wire is wound (which can ensure the precision of the wiring), the wiring is arranged during the winding process to ensure the precision and appearance of the wiring.

4.When multiple strands are wound at the same time (the precision of the wiring cannot be guaranteed).

5.There are many types of brushless motor winding machines, which can be divided into general-purpose type and special-purpose type according to their use, and special-purpose type-a brushless motor winding machine for a specific product.

6.Stator outer diameter: Ф30mm-φ300mm.

7.Adapt to wire diameter: φ0.09mm—φ1.55mm.

8.Rated speed: 400r/min.

9.Working air pressure: 0.5-0.7MPa.

10.Applicable fields: power tools, garden tools, automotive motors, hub motors, tendon guns, model aircraft and other fields.
